חדש N156HCA EAB REV.C3 BRACKETS InnoLux מסך למחשב נייד 30 PIN מט 15.6" FHD width: Nano 350mm IPS אוזניים למעלה ולמטה שני חורים

חדש N156HCA EAB REV.C3 BRACKETS InnoLux מסך למחשב נייד 30 PIN מט 15.6" FHD width: Nano 350mm IPS אוזניים למעלה ולמטה שני חורים
New in stock In Ashdod Branch Stock

* The picture is for illustration only

A short description

Innolux N156HCA-EAB REV.C3 15.6 inch Full HD matte laptop screen with 3H coating, AAS IPS-like technology, 250 nits brightness, wide viewing angles and easy installation with BRACKETS, Manufacturer: InnoLux, Warranty: 3 months

Please check the compatibility of a part according to the model number and photo before ordering, you can contact us to check compatibility

חדש N156HCA EAB REV.C3 BRACKETS InnoLux מסך למחשב נייד 30 PIN מט 15.6" FHD width: Nano 350mm IPS אוזניים למעלה ולמטה שני חורים

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 30₪ - over 499₪ - Free Delivery (For small packages)
  • Home delivery - 55 shekels -  over 2999₪ - Free Delivery

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 3 interest-free Credit Card (4-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Stock: In Ashdod Branch Stock
    • Print:
    • SKU: 76051
    • MPN: N156HCA-EAB REV.C3 + BRACKETS
    InnoLux
    ₪319
    Ex Tax: ₪319
    Add to Cart
    Buy Now!
    To Wish List To Compare
    Send us a question on WhatsApp
    Send a question about this product
    Specifications
    Review

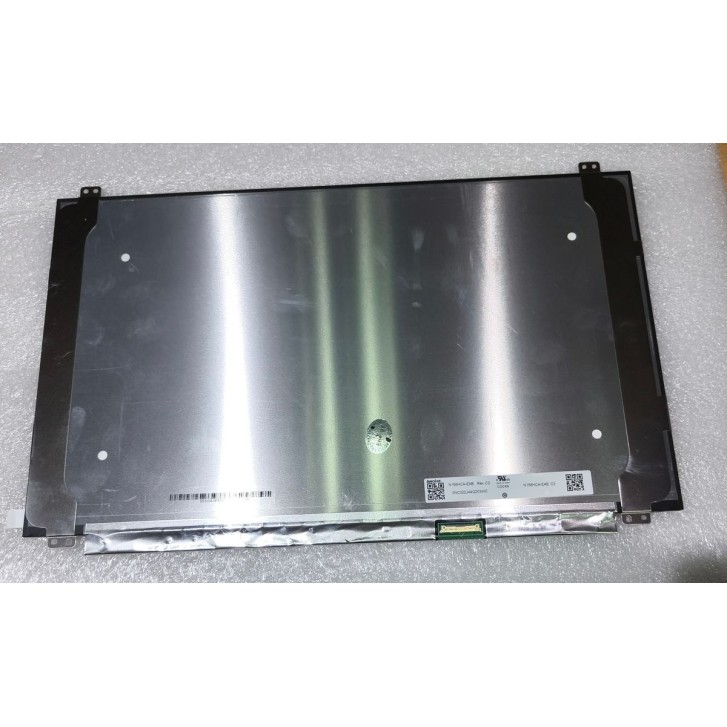

    Innolux N156HCA-EAB REV.C3 + BRACKETS — 15.6″ Full HD Matte Laptop Display

    High-quality 15.6-inch Innolux display with ‎1920×1080‎ (Full HD) resolution and ‎141 PPI‎ pixel density. The matte surface with ‎3H‎ hard coating reduces reflections and improves clarity in bright environments. Built on ‎AAS‎ technology from the ‎IPS‎ family, it delivers accurate colors, strong contrast and wide viewing angles. This version includes ‎BRACKETS‎ for quick and secure installation in compatible laptops.

    Main Specifications

    • Brand: Innolux | Model: N156HCA-EAB REV.C3 + BRACKETS
    • Diagonal Size: ‎15.6″‎ | Panel Type: ‎a-Si TFT-LCD, LCM‎
    • Resolution: ‎1920×1080 (Full HD)‎ | Pixel Density: ‎141 PPI‎
    • Pixel Format: ‎RGB Vertical Stripe‎
    • Active Area: ‎344.16(W)×193.59(H)‎ mm
    • Outline Dimensions: ‎350.66(H)×216.25(V)×3.2(D)‎ mm
    • Treatment: ‎Antiglare‎ with ‎3H Hard Coating‎
    • Typical Brightness: ‎250 cd/m²‎ | Typical Contrast Ratio: ‎700:1‎
    • Response Time: ‎14/11 ms (Tr/Td)‎
    • Viewing Angles: ‎89°/89°/89°/89°‎ (CR≥10)‎ in all directions
    • Color Depth: ‎16.7M (45% NTSC)‎
    • Operating Mode: ‎AAS, Normally Black, Transmissive‎ (IPS family)
    • Backlight: ‎WLED‎ with integrated driver, lifetime ~15K hours
    • Refresh Rate: ‎60Hz‎, supports MEMC enhancement up to ‎120Hz/240Hz‎
    • Interface: ‎eDP 1.2 (2 Lanes, 30-pin Connector)‎
    • Power Supply: ‎3.3V (Typ.)‎
    • Touch Panel: Without | Designed For: Laptop
    • Operating Temperature: ‎0~50°C‎ | Storage Temperature: ‎-20~60°C‎

    Design and Build

    • Ultra-slim design: ‎Slim (PCBA Flat, T≤3.2mm)‎
    • Includes ‎BRACKETS‎ for stable and convenient installation
    • Compatible with most laptops using ‎eDP 30-pin‎ interface

    Performance and Image Quality

    • Vivid, accurate colors and stable image quality with ‎AAS‎ (IPS-like) technology
    • Deep blacks and consistent contrast from any viewing angle
    • Built-in ‎MEMC‎ circuit for smoother motion and refresh stability

    Quick Specification Table

    ModelN156HCA-EAB REV.C3 + BRACKETS
    BrandInnolux
    Size‎15.6″‎
    Resolution‎1920×1080 (Full HD)‎
    Brightness‎250 cd/m²‎
    Contrast Ratio‎700:1‎
    Response Time‎14/11 ms (Tr/Td)‎
    Viewing Angles‎89/89/89/89‎ (CR≥10)
    Color Depth‎16.7M, 45% NTSC‎
    Backlight‎WLED‎ with Driver, ~15K hrs
    Interface‎eDP 1.2 (2 Lanes, 30-pin)‎
    Structure‎Slim (PCBA Flat, T≤3.2mm)‎ + ‎BRACKETS‎
    Voltage‎3.3V (Typ.)‎
    Operating Temp.‎0~50°C‎
    Storage Temp.‎-20~60°C‎

    Usage Notes

    • Compatible with laptops using ‎eDP 30-pin‎ (1.2) interface
    • Brightness, contrast and response times are typical values and may vary slightly between batches
    • Includes ‎BRACKETS‎ for easy and stable installation in laptop frames
    ConditionNew
    Warranty3 months
    ManufacturerInnoLux
    Warranty ServicesCOMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    ConnectionTop And bottom Brackets, Two Holes
    Connector30 PIN
    Manufacturer Part NumberN156HCA-EAB REV.C3 + BRACKETS
    Resolution1920x1080
    Resolution ClassificationFHD
    Screen Size15.6 inch
    Screen TypeIPS
    TypeMatte
    WidthNano, 350mm
    Product Linkחדש N156HCA EAB REV.C3 BRACKETS InnoLux מסך למחשב נייד 30 PIN מט 15.6" FHD width: Nano 350mm IPS אוזניים למעלה ולמטה שני חורים
    Matching SKUsID: 76051, OC: 17777, N156HCA-EAB REV.C3 + BRACKE
